Electropolishing khoom

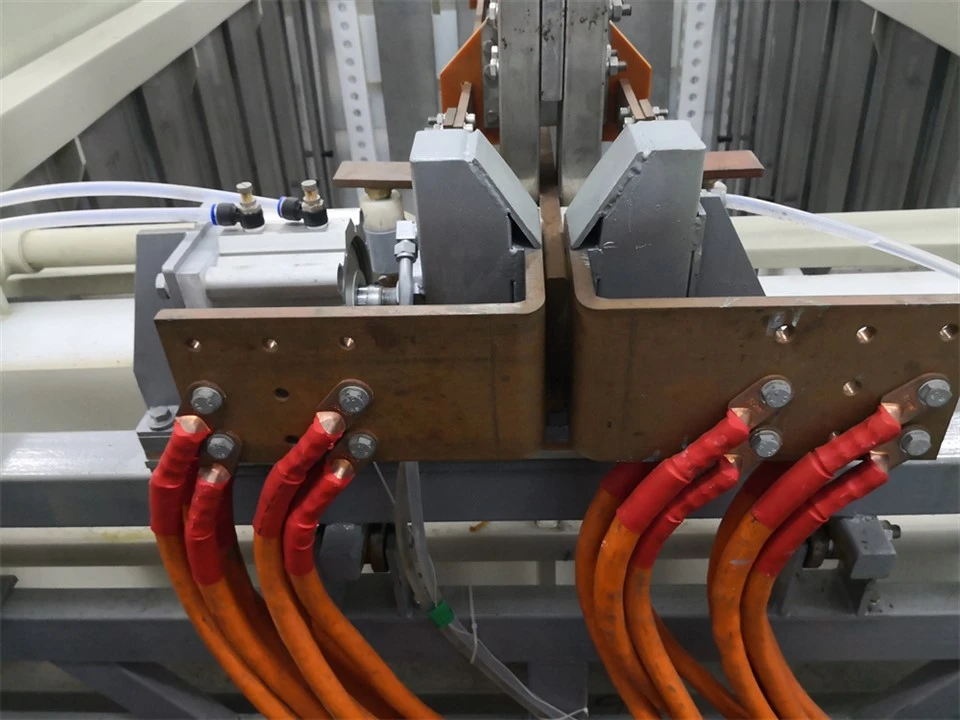

Electropolishing Equipment (JYC-EP-Series)
Ua rau Smoothing thiab Brightening Hlau nto
Stainless hlau, aluminium, tooj liab, thiab titanium qhov chaw. Cov khoom no xav tau ib tug du, ci, thiab corrosion-resistant nto. Peb Cov Khoom Siv Electropolishing ua qhov no. Cov txheej txheem siv hluav taws xob tam sim no tshem tawm cov kab mob microscopic ntawm cov hlau nto. Qhov no yoojyim ib tug du, daim iav -zoo li tiav. Cov khoom tshem tawm feem ntau yog 10 mus rau 50 microns. Nto roughness txhim kho los ntawm Ra 0.8 rau Ra 0.1 lossis zoo dua. Cov txheej txheem kuj txhim kho corrosion kuj. Stainless hlau qhov chaw qhia tau zoo dua passivation. Electropolishing raws li ASTM B912 rau stainless hlau passivation. Nws yog dav siv hauv kev ua zaub mov, khoom siv kho mob, thiab cov khoom siv semiconductor.
Khoom siv thiab kev tsim kho rau Corrosive Electrolytes
Electropolishing siv aggressive acidic electrolytes. Sulfuric acid thiab phosphoric acid yog ntau. Qee daim ntawv thov siv perchloric acid. Tank siv siab - zoo PP lossis PVDF hauv ob sab phlu. Cov cua sov yog titanium lossis quartz. Lub tshuab cua txias kuj tseem yog titanium. Exhaust systems yog qhov tseem ceeb. Peb suav nrog fume scrubbers los ntes cov kua qaub. Lub rectifier muab cov zis DC meej. Voltage yog 5 mus rau 20 V. Tam sim no ceev yog 10 mus rau 50 A / dm². Lub kaw lus suav nrog ntsuas kub ntawm 50 txog 80 degree.
Peb Qhov Zoo Tshaj Plaws
Ua ntej, qhov ua tiav yog du thiab ci.
Electropolishing tshem tawm qhov tsis zoo ntawm qhov chaw thiab microscopic burrs. Qhov tshwm sim yog ib qho huv si, muaj kev cuam tshuam qhov chaw uas yooj yim los ntxuav. Qhov no yog qhov tseem ceeb rau kev siv zaub mov thiab kev kho mob.
Qhov thib ob, corrosion kuj yog txhim kho.
Cov txheej txheem tshem tawm cov kab mob embedded thiab txhim kho cov txheej txheem passive. Stainless hlau qhov chaw qhia tau zoo heev tiv thaiv corrosion. Ntsev tshuaj ntsuam kev ua tau zoo txhim khu kev qha.
Thib peb, cov txheej txheem zoo ib yam.
Tsis zoo li txhua yam polishing, electropolishing kho txhua qhov chaw sib npaug. Tsis muaj tus neeg teb xov tooj qaug zog. Cov duab nyuaj thiab cov chaw sab hauv tau txais kev kho tib yam li cov chaw sab nraud.
Dab tsi buyers nquag nug
Cov neeg yuav khoom nug peb: "Cov cuab yeej siv kho mob thiab khoom noj khoom haus cov neeg siv khoom xav tau qhov chaw du, huv si, electropolishing pab li cas?" Nws tshem tawm burrs, txhim kho kev huv, thiab boosts corrosion kuj. Peb cov khoom siv electropolishing yog siv rau hauv cov khoom siv kho mob thiab cov khoom noj khoom haus. Peb muab cov kab tiav nrog rau kev yaug, electropolishing, thiab passivation. Txhua feem ua tau raws li qhov yuav tsum tau ua kom tiav specifications.
Technical Specifications
|
Parameter |
Specification |
|
Kev tshem tawm cov khoom siv |
10 – 50 µm |
|
Nto Roughness Txhim Kho |
Ra 0.8 rau Ra 0.1 lossis zoo dua |
|
Qhov hluav taws xob |
5 – 20 V |
|
Tam sim no ceev |
10-50 A / dm² |
|
Electrolyte kub |
50-80 degree |
|
Cov qauv siv tau |
ASTM B912 Cov Lus Qhia Tshwj Xeeb |
