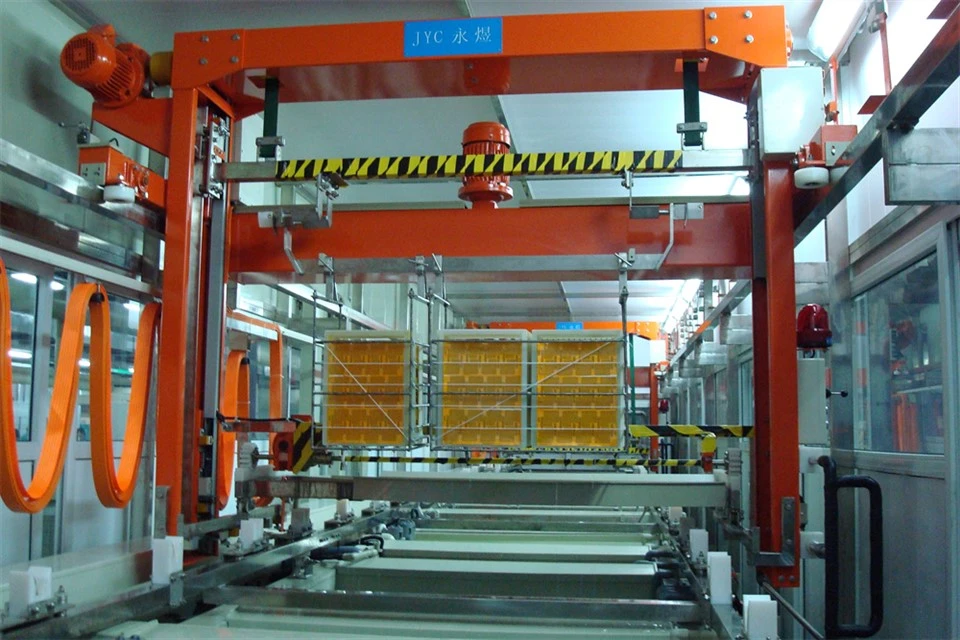

Cov khoom siv Stanatech
Electroless Tin Plating Equipment (JYC{0}}ELT-Series)
Ua rau Erosion Protection thiab Solderability
Semiconductor lead thav duab, nti resistors, thiab hluav taws xob connectors. Cov khoom no xav tau kev tiv thaiv ntawm tooj liab yaig thaum lub sij hawm soldering. Peb cov khoom siv Electroless Tin Plating muab kev tiv thaiv no. Cov txheej txheem tso ib txheej tin los ntawm tshuaj hloov chaw. Tin thickness feem ntau yog 0.5 txog 1.5 microns. Cov txheej tin no ua raws li kev thaiv. Nws tiv thaiv tooj liab los ntawm dissolving rau hauv lub solder. Nws kuj muab zoo solderability. Cov txheej txheem yog coj mus kuaj dawb thiab ua tau raws li RoHS cov cai. Nws yog qhov tshwj xeeb tshaj yog zoo rau cov khoom uas tau dhau los ntawm ntau lub voj voog rov qab. Kev ua tiav raws li ASTM B545 thiab IPC{14}}J{15}}STD-006 tus qauv.
Cov khoom siv thiab kev tsim kho rau kev tswj xyuas meej

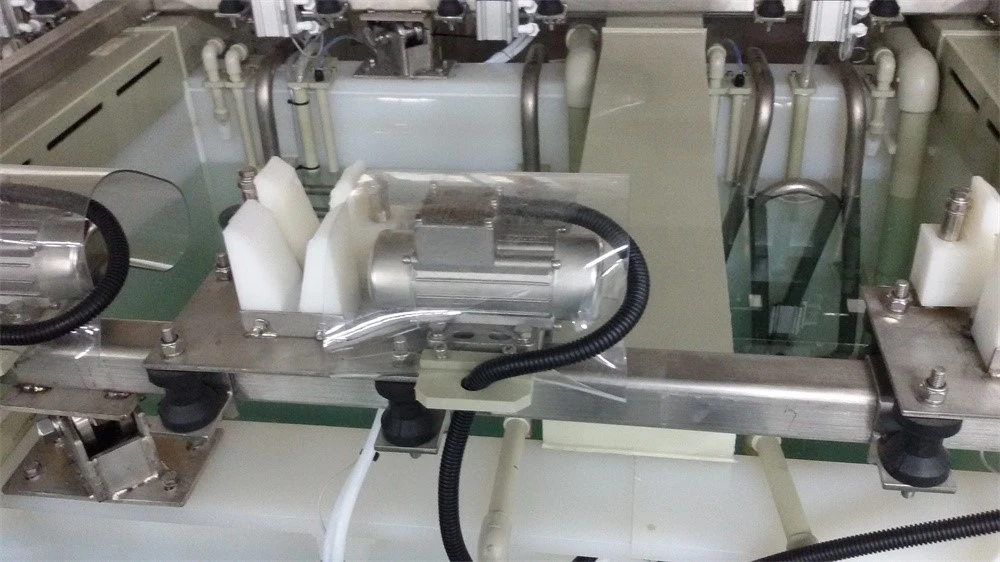

Tank siv siab -purity PP lossis PVC-U cov ntaub ntawv. Lub da dej ua haujlwm ntawm 70 txog 85 degree. Kub precision yog ± 1 degree. Lim yog txuas ntxiv ntawm 1-micron precision. Peb suav nrog tsis siv neeg ntxiv rau tin ntsev thiab additives. Online saib xyuas cov tin concentration thiab pH. Lub kaw lus kho dosing kom ruaj khov deposition.
Peb Qhov Zoo Tshaj Plaws
Ua ntej, txheej tin tiv thaiv kev yaig.
Thaum lub sij hawm soldering, tooj liab yuav yaj mus rau hauv molten solder. Qhov no ua rau tsis muaj zog hauv kev sib koom ua ke. Lub tin barrier txheej nres no erosion. Kev sib koom ua ke tseem muaj zog.
Qhov thib ob, solderability yog khaws cia raws sijhawm.
Electroless tin txheej tsis oxidize sai. Solderability tseem zoo rau txog 12 lub hlis ntawm kev cia. Tsis tas yuav tsum muaj dej ntxiv lossis ntxuav.
Thib peb, cov txheej txheem yog yooj yim los tswj.
Electroless tin deposition yog ib qho kev hloov pauv. Nws yog tus kheej - txwv. Thickness ib txwm stabilizes. Qhov no ua rau cov txheej txheem yooj yim los tswj thiab sib xws.
Dab tsi buyers nquag nug
Cov neeg yuav khoom nug peb: "Cov khoom lag luam xav tau kev tiv thaiv kev yaig thaum lub sij hawm soldering. Koj xav li cas?" Electroless tin yog cov tshuaj pov thawj. Peb tau xa cov khoom siv no rau cov khoom siv lead ua thiab cov khoom sib txuas. Cov txheej txheem sib txuas tau yooj yim nrog cov kab ntau lawm. Peb muab tag nrho kev teeb tsa, kev cob qhia, thiab kev txhawb nqa txheej txheem.
Technical Specifications
|
Parameter |
Specification |
|
Tin Txheej Thickness |
0.5 – 1.5 µm |
|
Da dej kub |
70-85℃(± 1 degree) |
|
Filtration Precision |
1 µm |
|
Solderability Retention |
Ntau dua lossis sib npaug li 12 lub hlis |
|
Cov qauv siv tau |
ASTM B545, IPC-J-STD-006, RoHS |
